AUTOMATIC EDGEBANDER
Automatic Edge Banding Machine UEB 640 PCGD
- SPECIFICATION
Basic Functions of Automatic Edge Banding Machine UEB 640 PCGD
The Automatic Edge Banding Machine UEB 640 PCGD is an advanced industrial solution crafted for modern modular and solid wood furniture manufacturers. With high-speed processing and integrated corner rounding, grooving, buffing, and dual trimming units, this machine sets the benchmark in edge finishing.
Whether you’re manufacturing kitchens, wardrobes, or commercial furniture, the Automatic Edge Banding Machine UEB 640 PCGD delivers unmatched precision and finish quality on MDF, plywood, or particle board panels. Designed for continuous high-volume production, it ensures long-lasting durability and smooth operation.
Automatic Edge Banding Machine UEB 640 PCGD IMAGES
Technical Specifications of Automatic Edge Banding Machine UEB 640 PCGD
| Feature | Details |
| Model | UEB 640 PCGD |
| Electric Level | 415-220/50 Hz |
| Edge Material Thickness | 0.4–3 mm |
| Panel Thickness | 10–50 mm |
| Minimum Panel Width | 60 mm |
| Minimum Panel Length | 130 mm |
| Conveyer Speed | 18 m/min |
| Conveyer Thickness Adjustment | Electric |
| Conveyer Up/Down | 0.37 kW |
| Total Electric Power | 16 kW |
| Total Air Pressure | 6–8 bars |
| Pre-Milling Motor Power | 2×1.5 kW |
| End Cutting Unit Power | 2×0.55 kW |
| Top/Bottom Fine Trimming Power | 2×0.55 kW |
| Top/Bottom Rough Trimming Power | 2×0.55 kW |
| Corner Rounding Unit Power | 0.5 kW |
| Grooving Motor Power | 4 kW |
| Max Grooving Depth | 17–9 mm Blade |
| Buffing Unit Power | 2×0.37 kW |
| Machine Size (L x W x H) | 7300 x 1650 x 1000 mm |
HIGHLIGHTS Of Automatic Edge Banding Machine UEB 640 PCGD
Pre milling Unit
- An automatic length sensor switch is installed, which allows accurate determination of panel length and processing of the entire panel.
- Equipped with a 1.5 KW spindle motor-powered, 12000 RPM diamond cutter head.
- There is a partition and an air blower installed between the Premilling Unit and the Glue Unit.
Glue & pressure roller unit
- Apply the hot melt glue on the panel, pneumatic cutting of PVC edge banding as per the length of the panel, gluing on the entire surface of the panel height.
- These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and inconsistency of glue.
- A pressure roller group consists of 4 pressure rollers. The first pressure roller diameter is 150 mm and the remaining pressure roller diameters are 100 mm.
- It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.
End Cutting unit
- Unit used to cut excess PVC from both ends of the panel. Equipped with high-frequency motors with a power of 0.55 kW and 12,000 rpm and saw blades with a diameter of 150 mm.
- This process ensures a precise edge finish for a perfect finished look.
Fine top/bottom trimming
- Performs fine trimming of the top and bottom edges of the pvc edge.
- Comes with 2 highend frequency motors with suction hood and vertical Guide Plate.
- Motors manually tiltable between 2 working positions: Flat and radius trimming.
Corner Rounding
- corner rounding unit for front and rear edges for perfect corner trimming.
- This unit works in different profile in prosessed post forming machine like half nose, full nose, and duck nose.
- Workpiece length min – 150 mm, edgebanding thickness upto 0.4 mm to 3mm.
PVC Scrapping Unit
- PVC Scrapping to remove excess pvc from top and bottom edge.
- It provides better edge, consistency, precision and smoothness..
- Includes 2 R-profile blades with suction hood and front and vertical guide plate.

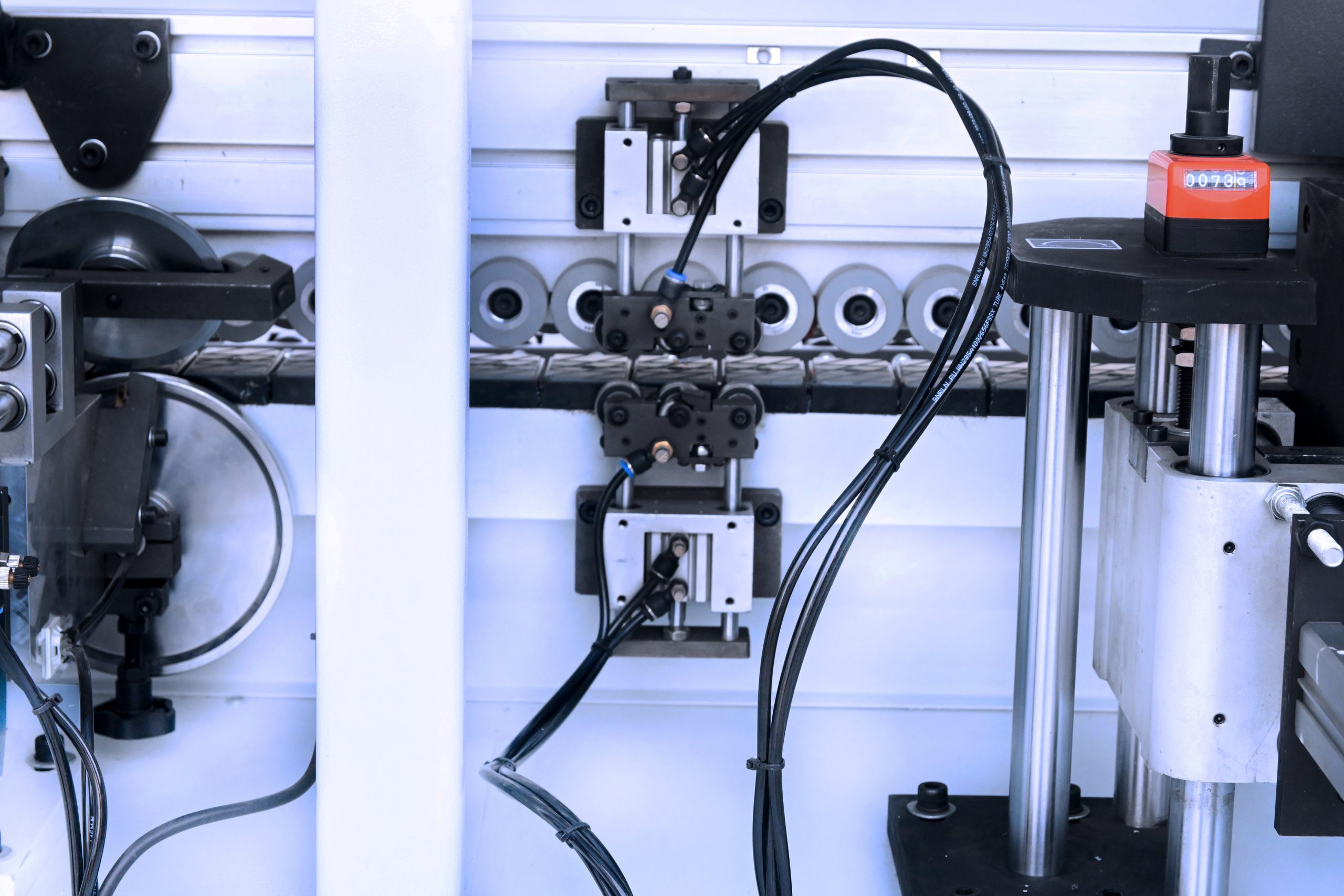

Glue Scraper
- The glue scraper helps remove excess adhesive from the joint surface of the panel and edgeband.
- This process ensures that there is no glue on the panel or outside the application area,.
Grooving unit
- The built-in grooving function in the machine gives easy work for making a groove on the board.
- This function is PLC controlled, so its very easy to operate.
Liquid Sprayer
- Spraying anti-adhesive liquid on the panel before buffing the unit gives the clean finished surface.
- Equipped with PLC controlled pneumatic flow.
- Workpiece length min – 150 mm, edgebanding thickness up to 0.4 mm to 3 mm.
Buffing unit
- Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
- Finishing the edge looks dimensional and attractive with this process.
Why Auto Edge Bander UEB 540 PC Will Be The Perfect Choice For Your Business ?
Built for heavy-duty performance in high-volume production lines
Complete edge banding solution – glueing, trimming, grooving, buffing & more
PLC touchscreen control panel for intelligent operation
Emergency stop system and auto-air pressure alert for safety
Heavy-duty CNC-welded steel frame ensures vibration-free, long-term use
Delivers premium finish with minimal manual intervention
