AUTOMATIC EDGEBANDER
Auto Edge Bander UEB 540 PC – High-Speed, High-Precision Edge Banding Solution
- SPECIFICATION
Basic Function of Auto Edge Bander UEB 540 PC Machine
The Auto Edge Bander UEB 540 PC is designed for large-scale furniture manufacturing units that demand speed, precision, and reliability in every edge banding operation. With advanced automation, a robust frame, and an intuitive control system, this model stands out as one of the most efficient machines in Umaboy’s edge banding lineup.
Built for industrial-grade use, the Auto Edge Bander UEB 540 PC handles all processes from glue application to buffing in one continuous cycle. Whether you’re working on MDF, plywood, or particle boards, this edge bander guarantees clean, smooth edges with minimum waste and maximum finish quality.

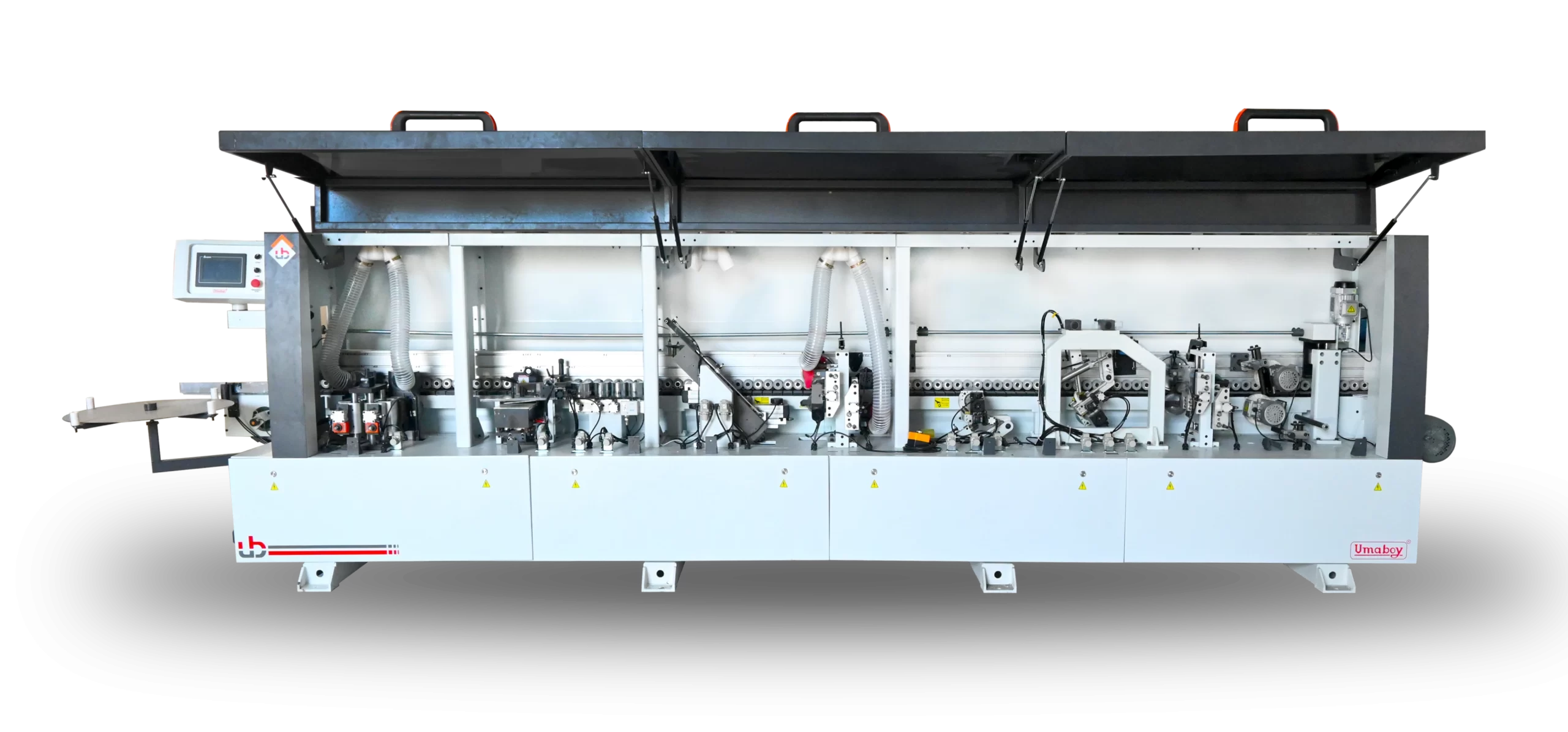

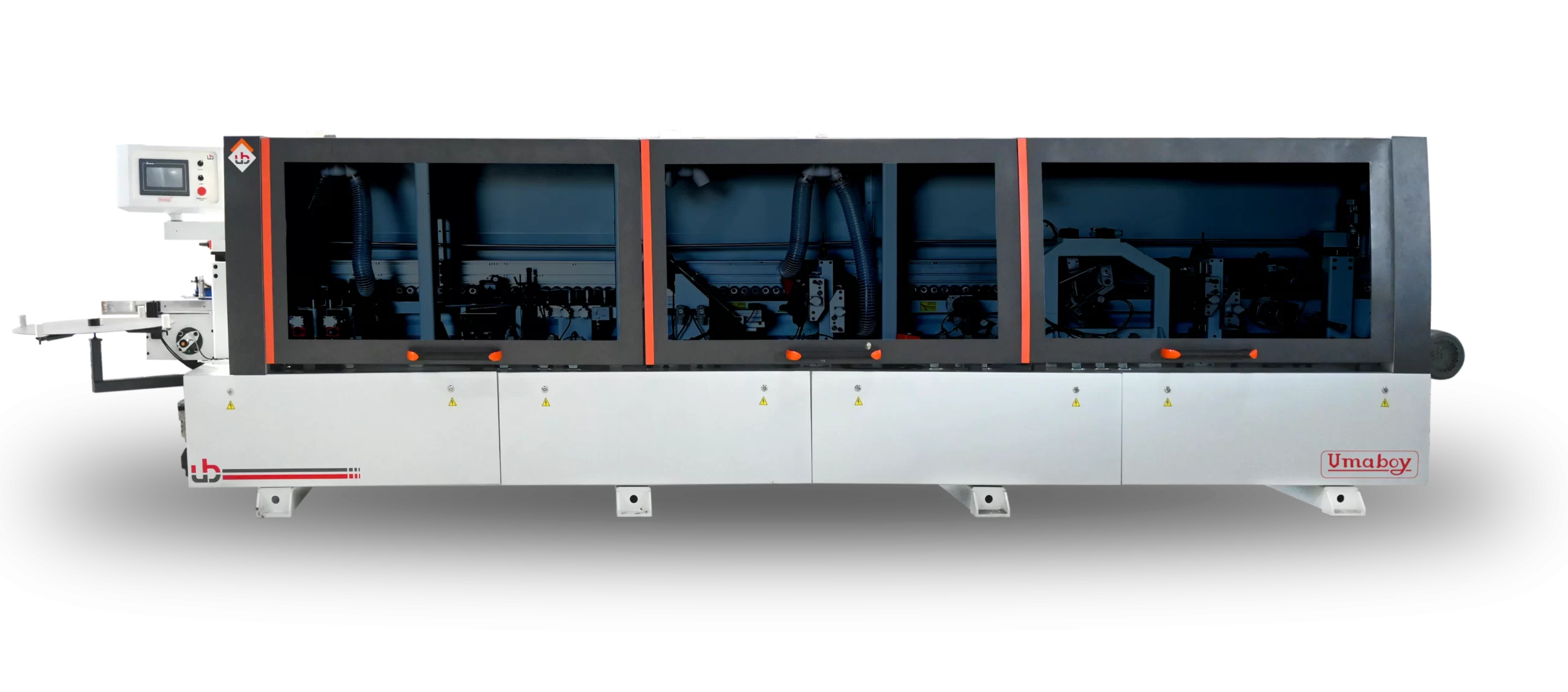

Auto Edge Bander UEB-540 PC IMAGES
Technical Specifications of Auto Edge Bander UEB 540 PC
| Specification | Value |
| Model | UEB 540 PC |
| Electric Level | 415-220-50 hz |
| Edge Material Thickness | 0.4-3 mm |
| Panel Thickness | 10-50 mm |
| Minimum Width of the Panel | 60 mm |
| Minimum Length of the Panel | 130 mm |
| Conveyer Speed | 18 m/min |
| Conveyer Thickness Adjustment | Electric |
| Conveyer Up / Down Power | 0.37 kw |
| Total Electric Power | 12 kw |
| Total Air Pressure | 6-8 bars |
| Pre-milling Motor Power | 2 x 1.5 kw |
| End Cutting Unit Power | 2 x 0.55 kw |
| Top/Bottom Fine-Trimming Power | 2 x 0.55 kw |
| Corner Rounding Unit Power | 2 x 0.3 kw |
| Buffing Unit Power | 2 x 0.37 kw |
| Overall Size (L x H x W) | 6300 x 1650 x 1000 mm |
Highlights of Auto Edge Bander UEB 540 PC
Premilling Unit
- An automatic length sensor switch is installed, which allows accurate determination of panel length and processing of the entire panel.
- Equipped with a 1.5 KW spindle motor-powered, 12000 RPM diamond cutter head.
- There is a partition and an air blower installed between the Premilling Unit and the Glue Unit.

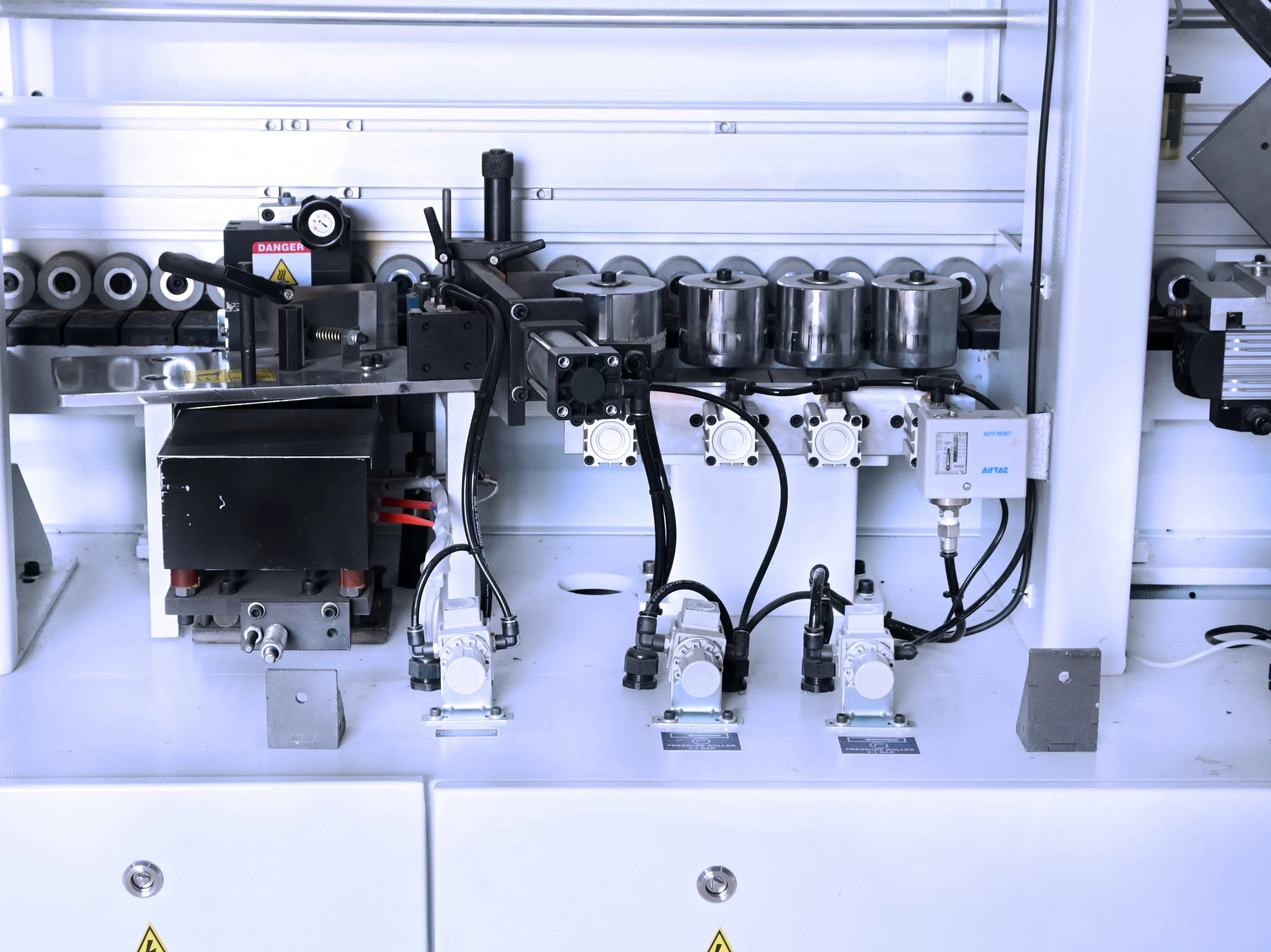

Glue & pressure roller unit
- Apply the hot melt glue on the panel, pneumatic cutting of PVC edge banding as per the length of the panel, gluing on the entire surface of the panel height.
- These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and inconsistency of glue.
- A pressure roller group consists of 4 pressure rollers. The first pressure roller diameter is 150 mm and the remaining pressure roller diameters are 100 mm.
- It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.
End Cutting unit
- Unit used to cut excess PVC from both ends of the panel. Equipped with high-frequency motors with a power of 0.55 kW and 12,000 rpm and saw blades with a diameter of 150 mm.
- This process ensures a precise edge finish for a perfect finished look.
Fine top/bottom trimming
- Performs fine trimming of the top and bottom edges of the pvc edge.
- Comes with 2 highend frequency motors with suction hood and vertical Guide Plate.
- Motors manually tiltable between 2 working positions: Flat and radius trimming.
Corner Rounding
- corner rounding unit for front and rear edges for perfect corner trimming.
- This unit works in different profile in prosessed post forming machine like half nose, full nose, and duck nose.
- Workpiece length min – 150 mm, edgebanding thickness upto 0.4 mm to 3mm.
PVC Scrapping Unit
- PVC Scrapping to remove excess pvc from top and bottom edge.
- It provides better edge, consistency, precision and smoothness..
- Includes 2 R-profile blades with suction hood and front and vertical guide plate.
Liquid Sprayer
- Spraying anti-adhesive liquid on the panel before buffing the unit gives the clean finished surface.
- Equipped with PLC controlled pneumatic flow.
- Workpiece length min – 150 mm, edgebanding thickness up to 0.4 mm to 3 mm.
Buffing unit
- Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
- Finishing the edge looks dimensional and attractive with this process.
Why Auto Edge Bander UEB 540 PC Will Be The Best Choice For Your Business ?
Designed for high-volume industrial use
Sturdy welded frame with minimal vibration
Minimal maintenance with maximum uptime
Integrated control system with auto-error detection
Ideal for modular furniture manufacturers and export units
