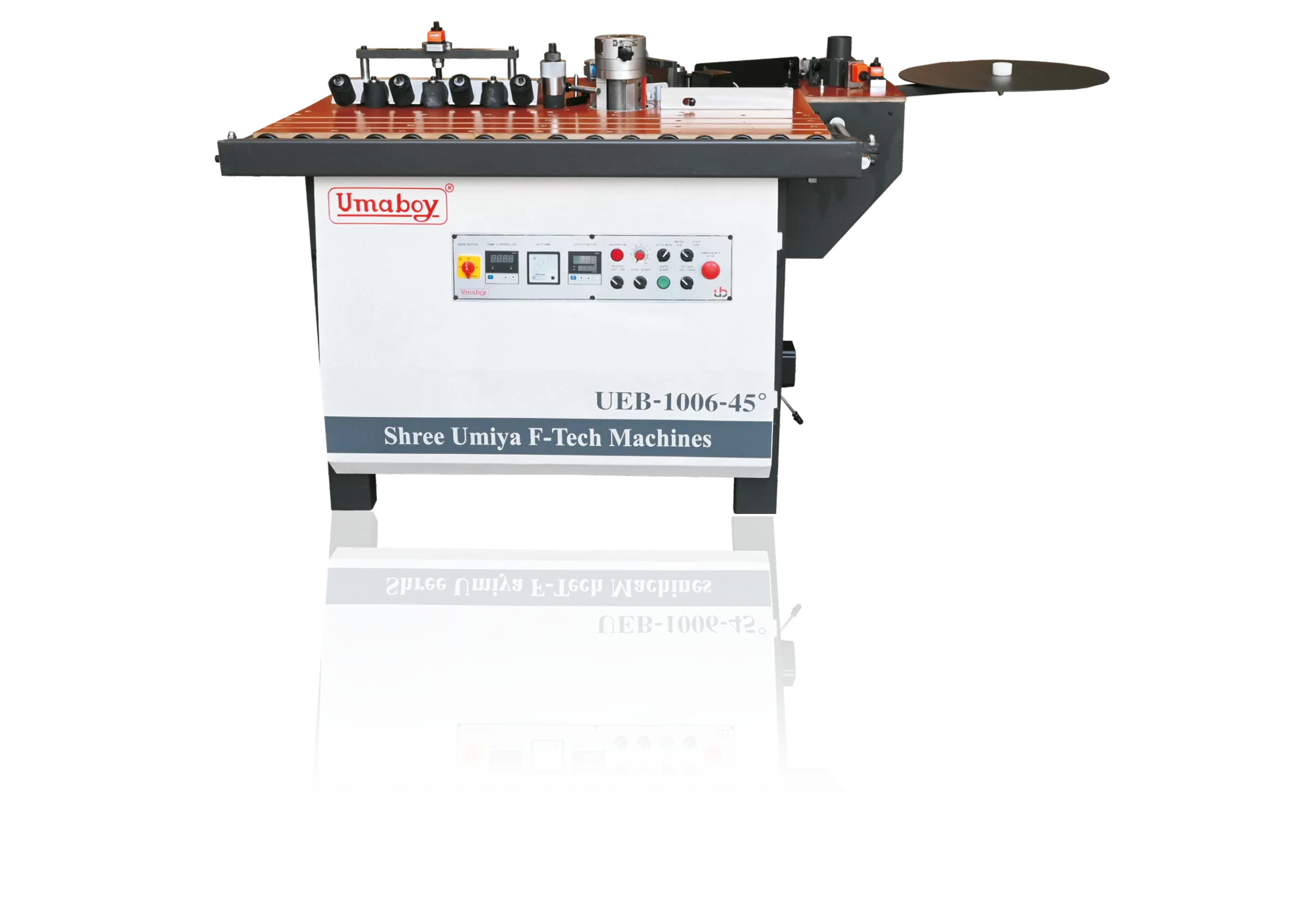

Manual Edge Bander Machine

U 1006 - 45°

Basic Function of Manual Edge Bander Machine U 1006 - 45°

The Manual Edge Bander U-1006-45° is a robust and easy-to-operate solution designed especially for applying edge bands at a precise 45° angle. Engineered by Umaboy, this machine is perfect for furniture makers and modular cabinet producers looking to achieve clean beveled edges without the high cost of automation.

Most edge banders support only straight panel finishing. But when your furniture designs require angled or chamfered edges, the U-1006-45° provides a cost-effective, manual solution that ensures precise alignment and durable bonding—without sacrificing productivity or finish quality.

PRODUCT IMAGES

Technical Specifications of Manual Edge Bander Machine U 1006 - 45°

Specification	Details
Model	U-1006-45°
Edge Banding Type	Manual
Angle Supported	45°
Tape Compatibility	PVC / ABS / Veneer
Edge Thickness	Up to 3 mm
Panel Application	Beveled / Angled Surfaces
Glue Pot	Integrated with thermostat
Operation	Manual
Ideal For	Furniture & Cabinet Makers

HIGHLIGHTS

Control Panel

Equipped with Length counter meter for processing pre define length of panel makes easy to operate the machine

Glue roller speed can be adjust according to the users by variable speed function.

Glue pot unit

Equipped with a 2.5 kg capacity glue pot.

Alluminium Diy casted glue pot offers an appropriate and uniform performance in every day working.

Scisor unit

Scissor functionality is pneumatically equipped with an SS sharp blade to cut the edge band smoothly.

It’s connected to the foot switch and micro switch (call upon user).

Swivel Bar

Extended swivel bar is to be had for working in a big length of panel.

This extendness will assist to make heavy work via way of means of easily.

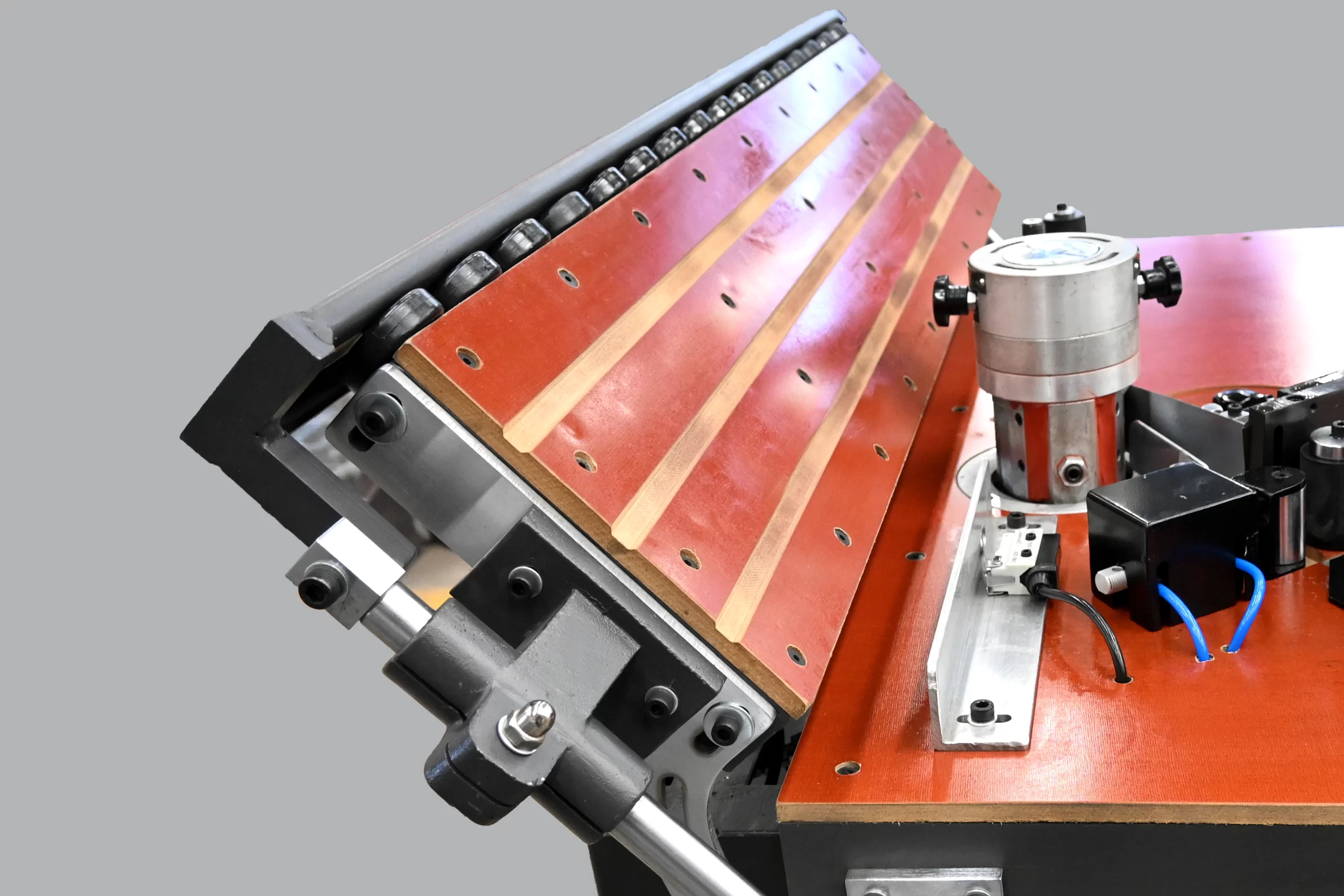

45° Tilting Bar

The tilting desk is equipped to apply edgeband on a panel with a 45° angle.

It can be move till 45° and help to hold panel with perfect position and

The top workstation is equipped with Hylam sheet. which accomplished with Heat resitant, shock proof, water proof

45° pvc edge band pressing unit

Equipped with a 45° roller to press the band for a perfect stuck-on panel
to log lasting performance.

These rollers are one after the other, symmetrically and with a static position, pressing the edge band straight and at 45° to make strong stuckness.

45° PVC V groove unit

45° PVC V-groove is functioning to make a groove on the edge band in order that the band can be stuck with the panel in a duck beak shape.
