highspeed AUTOMATIC EDGEBANDER
Auto Edge Bander UEB 860 PCGD
- SPECIFICATION
Basic Function of Auto Edge Bander UEB 860 PCGD Machine
The Automatic Edge Banding Machine UEB 860 PCGD is the most advanced edge bander in the UEB series, engineered to handle intensive workloads and deliver ultra-precise edge finishing. It combines corner rounding, pre-milling, rough trimming, fine trimming, and a dedicated grooving unit in one compact machine.
Ideal for modular furniture manufacturers seeking consistent, high-speed output with minimum operator intervention, the UEB 860 PCGD brings cutting-edge technology and flawless edge processing to your factory floor.

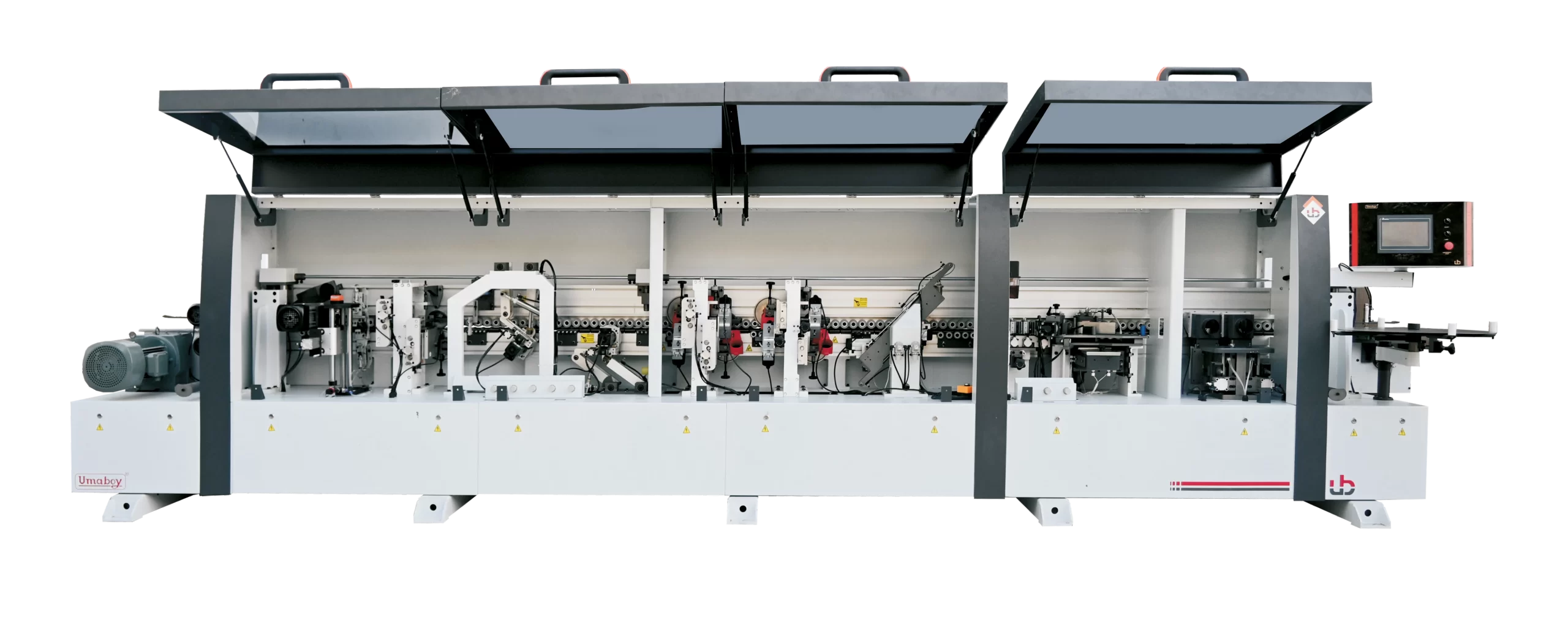

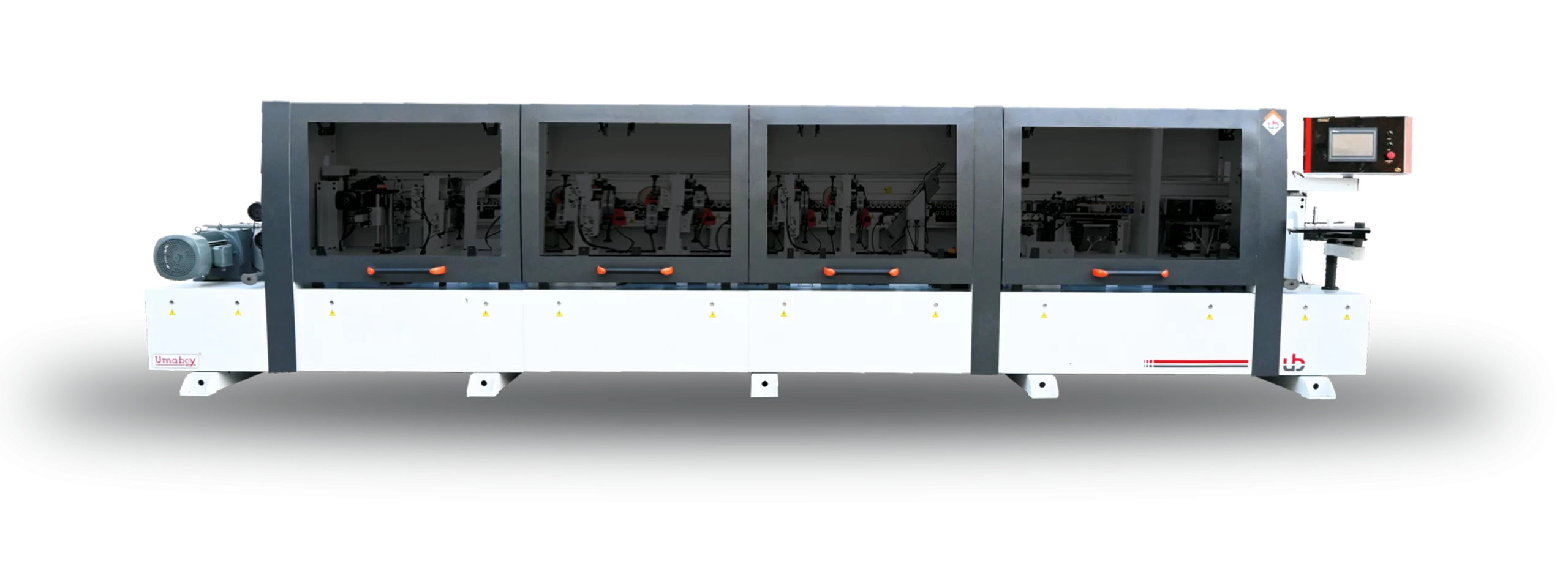

Auto Edge Bander UEB 860 PCGD IMAGES
Technical Specifications of Auto Edge Bander UEB 860 PCGD
| Specification | Details |
| Model | UEB 860 PCGD |
| Electric Level | 415-220/50 Hz |
| Edge Material Thickness | 0.4–3 mm |
| Panel Thickness | 10–60 mm |
| Minimum Width of Panel | 50 mm |
| Minimum Length of Panel | 120 mm |
| Conveyor Speed | 14/18/23 m/min |
| Conveyor Thickness Adjustment | Electric |
| Conveyor Up/Down | 0.37 kW |
| Total Electric Power | 23 kW |
| Total Air Pressure | 6–8 bars |
| Pre-Milling Motor Power | 2×2.2 kW |
| End Cutting Unit Power | 2×0.55 kW |
| Top/Bottom Fine Trimming Power | 2×0.55 kW |
| Top/Bottom Rough Trimming Power | 2×0.55 kW |
| Corner Rounding Unit Power | 2×0.3 kW |
| Grooving Unit Motor Power | 4 kW |
| Max. Depth of Grooving | 17 mm + 9 mm blade |
| Buffing Unit Power | 2×0.37 kW |
| Overall Size (L × W × H) | 7400 × 1600 × 1000 mm |
Auto Edge Bander UEB 860 PCGD HIGHLIGHTS
Premilling Unit
- An automatic length sensor switch is installed, which allows accurate determination of panel length and processing of the entire panel.
- Equipped with a 1.5 KW spindle motor-powered, 12000 RPM diamond cutter head.
- There is a partition and an air blower installed between the Premilling Unit and the Glue Unit.
Glue unit
- Apply the hot melt glue on the panel, pneumatic cutting of PVC edge banding as per the length of the panel, gluing on the entire surface of the panel height.
- These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and inconsistency of glue.
Pressure rollel group
- A pressure roller group consists of 4 pressure rollers. The first pressure roller diameter is 150 mm and the remaining pressure roller diameters are 100 mm.
- It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.
End Cutting unit
- Unit used to cut excess PVC from both ends of the panel. Equipped with high-frequency motors with a power of 0.55 kW and 12,000 rpm and saw blades with a diameter of 150 mm.
- This process ensures a precise edge finish for a perfect finished look.
Rough top/bottom trimming
- Perform Initial trimming of the top and bottom edges of the glued edge.
- Comes with 2 high end frequency motors with suction hood and front and vertical Guide Plate
- All spindles equipped with encoder readouts for fast adjustment
Fine top/bottom trimming
- Performs fine trimming of the top and bottom edges of the pvc edge.
- Comes with 2 highend frequency motors with suction hood and vertical Guide Plate.
- Motors manually tiltable between 2 working positions: Flat and radius trimming.
Corner Rounding
- corner rounding unit for front and rear edges for perfect corner trimming.
- This unit works in different profile in prosessed post forming machine like half nose, full nose, and duck nose.
- Workpiece length min – 150 mm, edgebanding thickness upto 0.4 mm to 3mm.
PVC Scrapping Unit
- PVC Scrapping to remove excess pvc from top and bottom edge.
- It provides better edge, consistency, precision and smoothness..
- Includes 2 R-profile blades with suction hood and front and vertical guide plate.
Glue Scraper
- The glue scraper helps remove excess adhesive from the joint surface of the panel and edgeband.
- This process ensures that there is no glue on the panel or outside the application area.
- Work as a soft scrapper which gives fine finishing.
Grooving Unit
- The built-in grooving function in the machine gives easy work for making a groove on the board.
- This function is PLC controlled, so it’s very easy to operate.
Liquid Sprayer
- Spraying anti-adhesive liquid on the panel before buffing the unit gives the clean finished surface.
- Equipped with PLC controlled pneumatic flow.
- Workpiece length min – 150 mm, edgebanding thickness up to 0.4 mm to 3 mm.
Buffing unit
- Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
- Finishing the edge looks dimensional and attractive with this process.
Why Auto Edge Bander UEB 860 PCGD Will Be The Perfect Choice For Your Business ?
All-in-one solution for edge banding, corner rounding, and grooving
High-speed conveyor up to 23 m/min for faster production cycles
Supports MDF, HDF, plywood, and particle board panels
Electric up/down for operator convenience
Heavy-duty build quality ensures vibration-free operations
Perfect for modular kitchen, wardrobe, and office furniture production
