AUTOMATIC EDGEBANDER
Automatic Edge Bander UEB 860 PC
- SPECIFICATION
Basic Functions of Automatic Edge Bander UEB 860 PC
The Automatic Edge Banding Machine UEB 860 PC is built for high-performance edge processing in modular furniture manufacturing. With a robust structure, intelligent automation, and versatile speed options (14/18/23 m/min), this machine is engineered for both precision and mass production.
Whether you’re running a small factory or a large furniture manufacturing unit, the UEB 860 PC delivers premium edge finishing with less manpower and higher accuracy. From panel feeding to corner rounding, every function is designed to produce a smooth, ready-to-assemble product.
Technical Specifications of Automatic Edge Bander UEB 860 PC
| Specification | Details |
| Model | UEB 860 PC |
| Electric Level | 415-220/50 Hz |
| Edge Material Thickness | 0.4–3 mm |
| Panel Thickness | 10–60 mm |
| Minimum Width of Panel | 50 mm |
| Minimum Length of Panel | 120 mm |
| Conveyor Speed | 14/18/23 m/min |
| Conveyor Thickness Adjustment | Electric |
| Conveyor Up/Down | 0.37 kW |
| Total Electric Power | 18 kW |
| Total Air Pressure | 6–8 bars |
| Pre-Milling Motor Power | 2×2.2 kW |
| End Cutting Unit Power | 2×0.55 kW |
| Top/Bottom Fine Trimming Unit Power | 2×0.55 kW |
| Corner Rounding Unit Power | 2×0.3 kW |
| Max Grooving Depth | 17 mm + 9 mm Blade |
| Buffing Unit Power | 2×0.37 kW |
| Overall Size (L × W × H) | 6350 × 1600 × 1000 mm |
Automatic Edge Bander UEB 860 PC IMAGES
HIGHLIGHTS OF Automatic Edge Bander UEB 860 PC
Premilling Unit
- An automatic length sensor switch is installed, which allows accurate determination of panel length and processing of the entire panel.
- Equipped with a 1.5 KW spindle motor-powered, 12000 RPM diamond cutter head.
- There is a partition and an air blower installed between the Premilling Unit and the Glue Unit.
Glue unit
- Apply the hot melt glue on the panel, pneumatic cutting of PVC edge banding as per the length of the panel, gluing on the entire surface of the panel height.
- These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and inconsistency of glue.
Pressure rollel group
- A pressure roller group consists of 4 pressure rollers. The first pressure roller diameter is 150 mm and the remaining pressure roller diameters are 100 mm.
- It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.

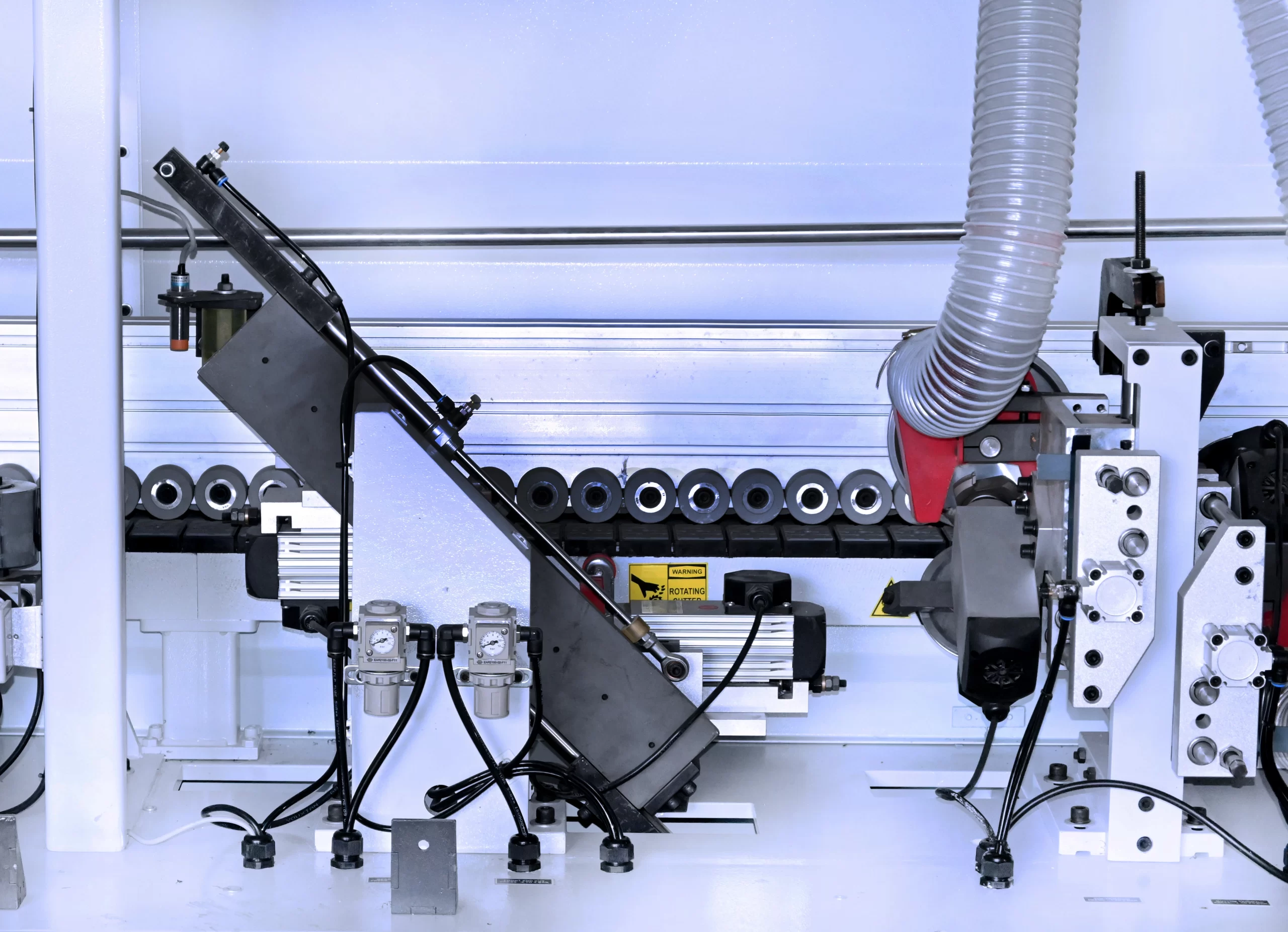

End Cutting unit
- Unit used to cut excess PVC from both ends of the panel. Equipped with high-frequency motors with a power of 0.55 kW and 12,000 rpm and saw blades with a diameter of 150 mm.
- This process ensures a precise edge finish for a perfect finished look.
Fine top/bottom trimming
- Performs fine trimming of the top and bottom edges of the pvc edge.
- Comes with 2 highend frequency motors with suction hood and vertical Guide Plate.
- Motors manually tiltable between 2 working positions: Flat and radius trimming.
Corner Rounding
- corner rounding unit for front and rear edges for perfect corner trimming.
- This unit works in different profile in prosessed post forming machine like half nose, full nose, and duck nose.
- Workpiece length min – 150 mm, edgebanding thickness upto 0.4 mm to 3mm.
PVC Scrapping Unit
- PVC Scrapping to remove excess pvc from top and bottom edge.
- It provides better edge, consistency, precision and smoothness..
- Includes 2 R-profile blades with suction hood and front and vertical guide plate.
Glue Scraper
- The glue scraper helps remove excess adhesive from the joint surface of the panel and edgeband.
- This process ensures that there is no glue on the panel or outside the application area.
Liquid Sprayer
- Spraying anti-adhesive liquid on the panel before buffing the unit gives the clean finished surface.
- Equipped with PLC controlled pneumatic flow.
- Workpiece length min – 150 mm, edgebanding thickness up to 0.4 mm to 3 mm.
Buffing unit
- Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
- Finishing the edge looks dimensional and attractive with this process.
Why Automatic Edge Bander UEB 860 PC Will Be The Perfect Choice For Your Business ?
Variable speed options for different production requirements
Full automation for uninterrupted edge processing
Perfect for laminated, MDF, particle board, and plywood
Built-in safety systems and reliable air-pressure integration
Heavy-duty frame minimizes vibration during high-speed operation
Delivers consistent quality – panel after panel
